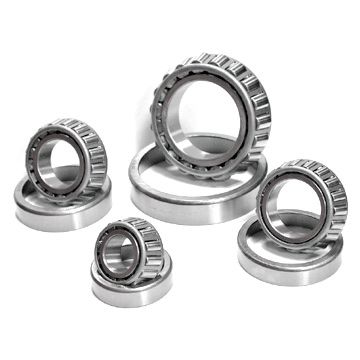

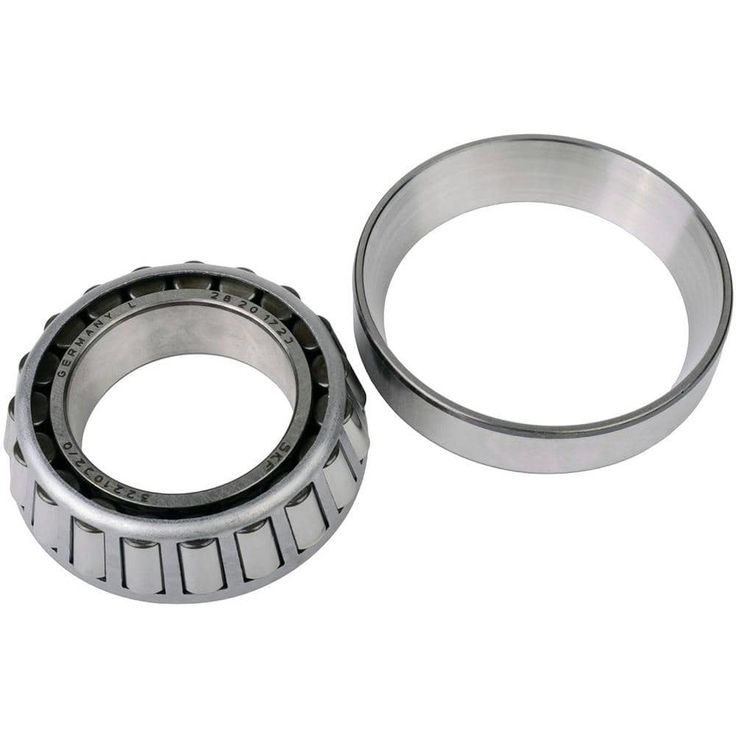

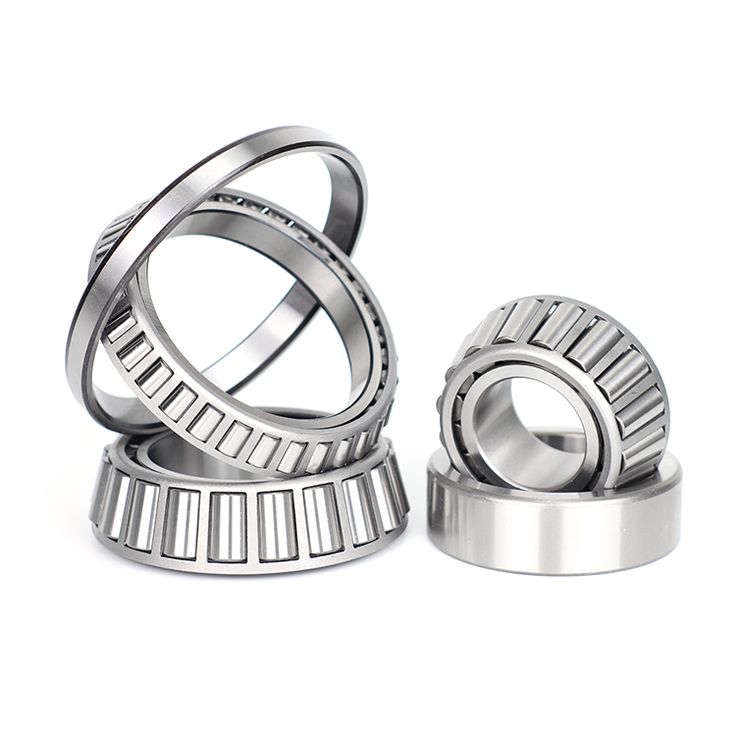

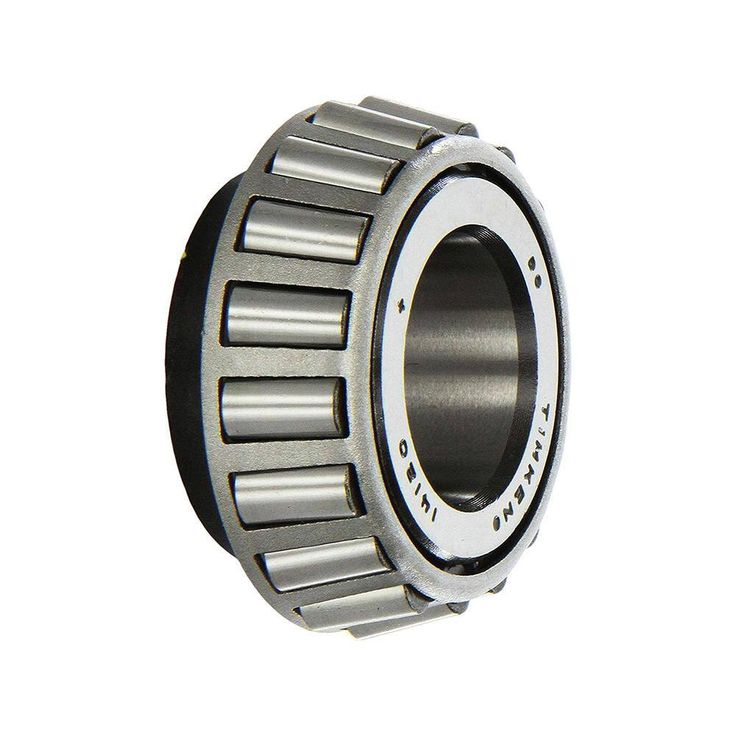

Tapered Roller Bearing

Common Specifications:

Single Row: The most common type, used in many automotive and industrial settings.
Double Row: Features two cones and two cups, used in heavy-duty applications like rolling mills and gearboxes.
Four Row: Primarily for extreme work roll applications in rolling mills.

One of the most popular and highly demanded types of bearings on the market, the tapered roller bearing is used in a wide variety of applications, ranging from boat trailers to truck axles, and slow-closing door mechanisms to automotive gearboxes. With this in mind, All Machinery Parts Ltd has one of the largest ranges of both metric and imperial sizes in the UK. With partners such as NTN, Koyo, Timken, and Rollway, we can supply high-quality products on a 3-5 day basis.

Bearing Number	d	D	H	Mass
32203-A	17 mm	40 mm	17.25 mm	0.11 KG
32203-XL	17 mm	40 mm	17.25 mm	0.11 KG
32204-A	20 mm	47 mm	19.25 mm	0.17 KG
32204-XL	20 mm	47 mm	19.25 mm	0.17 KG
322/22R	22 mm	50 mm	19.25 mm	0.18 KG
322/22CR	22 mm	50 mm	19.25 mm	0.17 KG
32205-A	25 mm	52 mm	19.25 mm	0.19 KG
32205-XL	25 mm	52 mm	19.25 mm	0.19 KG
322/28R	28 mm	58 mm	20.25 mm	0.24 KG
322/28CR	28 mm	58 mm	20.25 mm	0.26 KG
32206-A	30 mm	62 mm	21.25 mm	0.27 KG
32206-XL	30 mm	62 mm	21.25 mm	0.28 KG
322/32	32 mm	65 mm	22.25 mm	0.33 KG
322/32CR	32 mm	65 mm	22.25 mm	0.34 KG
32207-A	35 mm	72 mm	24.25 mm	0.48 KG
32207-XL	35 mm	72 mm	24.25 mm	0.45 KG
32208-A	40 mm	80 mm	24.75 mm	0.6 KG
32208-XL	40 mm	80 mm	24.75 mm	0.6 KG
32209-A	45 mm	85 mm	24.75 mm	0.57 KG
32209-XL	45 mm	85 mm	24.75 mm	0.59 KG
32210-A	50 mm	90 mm	24.75 mm	0.6 KG
32210-XL	50 mm	90 mm	24.75 mm	0.7 KG
32211-A	55 mm	100 mm	26.75 mm	0.87 KG
32211-XL	55 mm	100 mm	26.75 mm	0.87 KG
32212-A	60 mm	110 mm	29.75 mm	1.18 KG
32212-XL	60 mm	110 mm	29.75 mm	1.18 KG
32213-A	65 mm	120 mm	32.75 mm	1.49 KG
32213-XL	65 mm	120 mm	32.75 mm	1.56 KG
32214-A	70 mm	125 mm	33.25 mm	1.66 KG
32214-XL	70 mm	125 mm	33.25 mm	1.81 KG
32215-A	75 mm	130 mm	33.25 mm	1.93 KG
32215-XL	75 mm	130 mm	33.25 mm	1.75 KG
32216-A	80 mm	140 mm	35.25 mm	2.15 KG
32216-XL	80 mm	140 mm	35.25 mm	2.14 KG
32217-A	85 mm	150 mm	38.5 mm	2.72 KG
32217-XL	85 mm	150 mm	38.5 mm	2.7 KG
32218-A	90 mm	160 mm	42.5 mm	3.78 KG
32218-XL	90 mm	160 mm	42.5 mm	3.43 KG
32219-A	95 mm	170 mm	45.5 mm	4.59 KG
32219-XL	95 mm	170 mm	45.5 mm	4.59 KG
32220-A	100 mm	180 mm	49 mm	5.15 KG
32220-XL	100 mm	180 mm	49 mm	5.21 KG
32221-A	105 mm	190 mm	53 mm	6.3 KG
32221-XL	105 mm	190 mm	53 mm	6.3 KG
32222-A	110 mm	200 mm	56 mm	7.32 KG
32222-XL	110 mm	200 mm	56 mm	7.2 KG
32224-A	120 mm	215 mm	61.5 mm	9.3 KG
32224-XL	120 mm	215 mm	61.5 mm	9.31 KG
32226-A	130 mm	230 mm	67.75 mm	11.5 KG
32226-XL	130 mm	230 mm	67.75 mm	11.4 KG
32228-A	140 mm	250 mm	71.75 mm	14 KG
32228-XL	140 mm	250 mm	71.75 mm	14.5 KG
32230-A	150 mm	270 mm	77 mm	18.2 KG
32230-XL	150 mm	270 mm	77 mm	18.1 KG
32232-A	160 mm	290 mm	84 mm	23.4 KG
32232-XL	160 mm	290 mm	84 mm	23.1 KG
32234-A	170 mm	310 mm	91 mm	28.8 KG
32234-XL	170 mm	310 mm	91 mm	28.7 KG
32236-A	180 mm	320 mm	91 mm	30.1 KG
32236-XL	180 mm	320 mm	91 mm	29.9 KG
32238-A	190 mm	340 mm	97 mm	39.1 KG
32238-XL	190 mm	340 mm	97 mm	35.9 KG
32240-A	200 mm	360 mm	104 mm	43.2 KG
32240-XL	200 mm	360 mm	104 mm	42.7 KG
32244-A	220 mm	400 mm	114 mm	59.5 KG
32244-XL	220 mm	400 mm	114 mm	59.6 KG
32248-A	240 mm	440 mm	127 mm	80.5 KG
32248-XL	240 mm	440 mm	127 mm	80.6 KG
32252	260 mm	480 mm	137 mm	102 KG
32252-XL	260 mm	480 mm	137 mm	105 KG
32256-XL	280 mm	500 mm	137 mm	112 KG
32260	300 mm	540 mm	149 mm	139 KG
32260-XL	300 mm	540 mm	149 mm	139 KG
32264	320 mm	580 mm	159 mm	170 KG
32264-XL	320 mm	580 mm	159 mm	170 KG
